Pos barcode scanner handfree omni-directional laser barcode scanner for supermarket

FOB Reference Price:Get Latest Price
$120.00 - $190.00 / Piece | 2 Piece/Pieces (Min. Order)
Model Number:
MS7120
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Metrologic/Honeywell
Type:
Barcode Scanner
Interface Type:
COM, PS/2, USB
Colour Depth:
32 Bit
Scan Element Type:
ABS+PC
Max Paper Size:
200mm
Optical Resolution:
4mil
Scan Speed:
1500times/sec
Products Status:
Stock
Light source:
Visible Laser Diode
Wave length:
650nm
Scan mode:
20-line scanning
Scan speed:
1500times/sec
Scan distance:
0-200mm
Scan direction:
5 scan direction
Min resolution:
0.10mm(pcs0.9)
Interface:
USB,RS232,PS2
Material:
ABS+PC
Color:
black/white
Supply Ability
Supply Ability:
500 Piece/Pieces per Week 15000pcs/month
Packaging & Delivery
Packaging Details
package size :26.5*19.8*12cm
gross weight is about 5.5KG
Port
shenzhen/HK

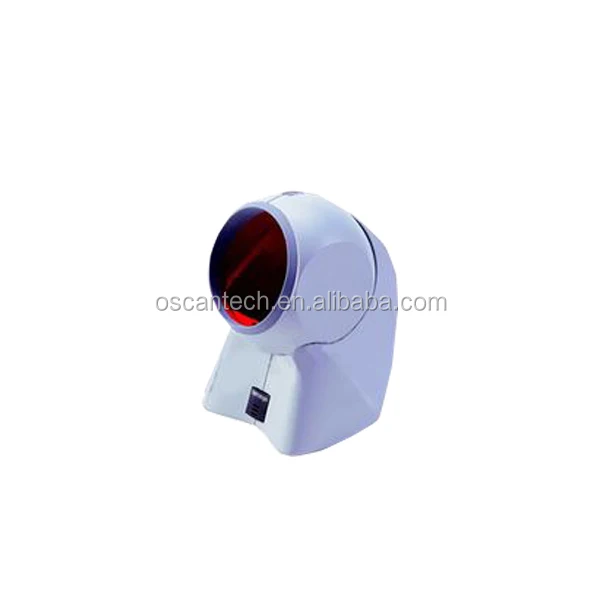

Pos barcode scanner handfree omni-directional laser barcode scanner for supermarket



.jpg





1. Use replaceable cables for PowerLink users
2. Fixed on the wall or check counter
3. Customize the depth-of-field according to different circumstance
4. Edit the barcode data to meet the requirements of the users
5. Multiple beeper tones



The MS7120, the all-time, best-selling hands-free omnidirectional barcode scanner presents an innovative, elegant and affordable solution to convenience retail applications where counter space is at a premium.



Recipient of multiple design honors, MS7120s award-winning shape enables hand-held scanning of large, bulky items. For added flexibility, the scanning head can be tilted within a 30° range to accommodate objects of various sizes and shapes.









                     Technical Parameters

Light source

Visible Laser Diode

Wave length

650nm

Scan mode

20-line scanning

Scan speed

1500times/sec

Scan distance

0-200mm

Scan window

128mm @ 200mm

Scan direction

5 scan direction

Min resolution

0.10mm(pcs0.9)

Decoding capability

EAN-8, EAN-13, UPC-A, UPC-E, Code 39, Code 93, Code 128, EAN128, Codabar, Industrial 2 of 5, Interleave 2 of 5, Matrix 2 of 5, MSI, China Postal Code, etc.

Interface

USB,RS232,PS2

Print contrast

30%

Error rate

1/5 million

Indicator

Two color LED (green & red)

Beeper Operation

Programmable tone & volum

Physical parameter

L*W*H: 60mm*128mm*154mm;Weight:300g

Material

ABS+PC

Cable

2 meters long

Electrical parameter

Voltage: 5V; Electric current: 200mA; Power: 1.0 Watts

Laser safety

CDRH Class IIa: IEC 60825-1: Class I

EMC

CE & FCC DOC compliance

Environmental parameter

Operating temperature: -20°C-45°C Storage temperature: -20°C-60°C Humidity: relative humidity 5%-95%(non-condensing)Light level: sunlight 4.000lux Max

Shock resistance

Designed to withstand 2 meters drop on concrete surface

Technical parameters are subject to be changed without notice!
